Tailor-made metal-clad MV switchgear for your company

Artemisa, Cuba

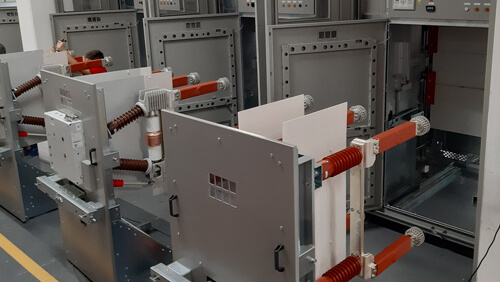

MV METAL-CLAD ELECTRICAL SWITCHGEAR 40.5kV 2000A 40kA 60Hz FOR STEELWORK APPLICATION

The great project has included Normal Clad electrical switchgear for a 220/38.5kV electrical substation, designed for a Cuban steelwork.
In detail, there have been designed and built:

• n. 8 STC-Box modular shelters, assembled together
• n. 4 medium-voltage (MV) cubicles Normal Clad for furnace 40.5kV 2000A 40kA 60Hz
• n. 96 metal-enclosed medium-voltage Normal Clad cubicles 12kV 2500A 25kA
• low-voltage (LV) switchboards SDS type 220V

Thanks to its structure, designed to meet high electrical and mechanical requirements, the 40.5kV furnace cubicles with withdrawable circuit-breaker is used for special applications and is mounted on an anti-vibrating system. Furthermore, thanks to the IP5X degree of protection, it can operate in environments subject to pollution caused by ferrous dust and corrosive gases.

Yauyos, Peru

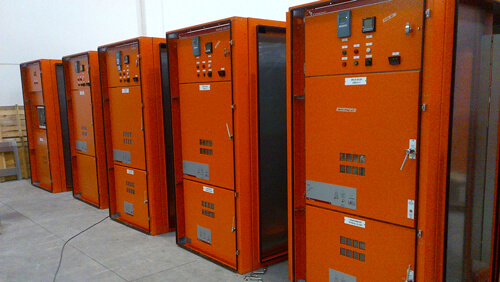

IP65 MV METAL-CLAD SWITCHGEARS 24kV 630A 31.5kA and 17,5kV 1250A 31.5kA 60Hz FOR MINE

The project has the aim to increase the electrical grid of a mine located in the province of Yauyos (Peru) and it has involved the design, construction and supply of n. 7 medium-voltage Normal Clad cubicles 24kV 630A 31.5kA and 17.5kV 1250A 31.5kA, with IP65 protection degree. The high degree of protection allows the cubicles to be fully protected against dust.

Bassora, Iraq

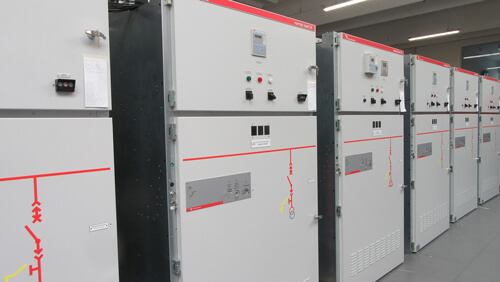

N. 55 MV METAL-CLAD SWITCHGEARS 36KV AND 12KV 2500-4000A 40KA (3S)

Design, construction and start-up of medium-voltage switchgears for primary distribution, aimed to increase the electrification of the Iraqi national grid, in order to guarantee high-reliability and continuity of service. The project has involved the construction, according to the customer's specific requests, of n. 55 medium-voltage Normal Clad switchgear cubicles 33kV and 11kV 2500-4000A 40kA (3s), equipped with protection relays, switches and transformers. Thanks to their features, the paintings are resistant to the high environmental temperatures of this nation, which in summer reach 55°C.

Montalto di Castro, Italy

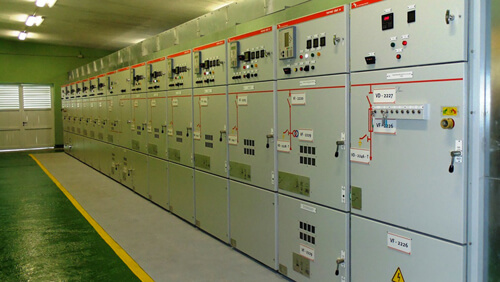

MV METAL-CLAD SWITCHGEAR 24KV 2000A 16KA FOR PHOTOVOLTAIC PLANTS

The project was carried out in Montalto di Castro, in Viterbo, a well-known location as one of the largest solar photovoltaic plant in Italy. Carrying out of an AIS medium-voltage metal-clad switchgear 20kV 2000A 16kA and for a centralized supply of five photovoltaic plants in this area (Vivaldi, Verdi, Puccini, Rossini and Paganini).
